Welded Hinge Steel Belt Conveyors
The Industry’s Toughest Steel Belt Conveyors
Transcon welded hinge steel belt conveyors are engineered for extreme-duty applications where traditional pinned or piano-hinge belts fail. Built using Transcon’s exclusive welded-loop hinge design, these conveyors deliver unmatched strength, reliability, and long-term performance in harsh industrial environments.
The strongest, longest-lasting steel belt conveyors on the market - engineered for maximum uptime.
Designed for the Harshest Industrial Conditions
Welded Hinge Belts Built for Strength, Uptime, and Durability
Transcon’s welded hinge steel belt conveyors are purpose-built for applications that involve high temperatures, heavy impact, sharp scrap, abrasive materials, and continuous operation. Our welded-loop hinge design eliminates the weak points found in standard pinned hinges, delivering significantly longer service life and reduced maintenance.
Ideal for operations such as:
- Scrap removal from stamping presses
- Chip and coolant management from CNC machines
- High-impact metal forming
- Hot forging processes
- Steel and aluminum production
- High-volume scrap and bulk material handling
Every conveyor is built using thick-gauge materials tailored to the load, temperature, and daily duty cycle of your process.
Transcon Conveyor
- Welded-loop hinge construction
- Up to 4× thicker material
- Handles up to 600 lbs/ft
- Long multi-year service life
- Built for severe-duty loads
Leading Competitors
- Pinned/piano hinge construction
- Thin-gauge belt sections
- Handles ~20 lbs/ft
- Frequent hinge and belt failures
- Built for light/medium duty
Exclusive Welded-Loop Hinge Design
Why Welded Hinges Outperform Standard Piano Hinges
Traditional hinge belts rely on pins that eventually stretch, shear, or deform under heavy loads. Transcon’s welded-loop design eliminates the hinge pin entirely, creating a continuous welded connection that distributes load forces more evenly and resists long-term fatigue.
Key advantages include:
- No pins to shear or loosen over time
- Stronger hinge structure for high-impact materials
- Better alignment and tracking under load
- Reduced belt stretch and deformation
- Longer lifespan, even in high-temperature environments
This engineered hinge design is a core differentiator that sets Transcon apart from commodity steel belt conveyors.
Built for Extreme Environments
High-Temperature, High-Impact, and Heavy-Load Performance
These conveyors excel where other belts wear out quickly. They can be designed to withstand:
- Hot forgings and castings
- Scale and high-temperature scrap
- Sharp, abrasive metal offcuts
- Oil, coolant, and machining fluids
- Heavy shock loads from robotic unloaders
- High-volume, continuous-duty material flow
Transcon engineers each conveyor based on your exact loading, temperature, and duty-cycle requirements to ensure safe, long-term operation.
Engineered for Long-Term Reliability
Transcon’s welded hinge belt conveyors are trusted across the industry because they offer the lowest total cost of ownership. With heavy-duty construction, long service life, and unmatched resistance to wear and impact, these conveyors continue performing where lighter-duty systems fail.
Explore Conveyor Types and Applications

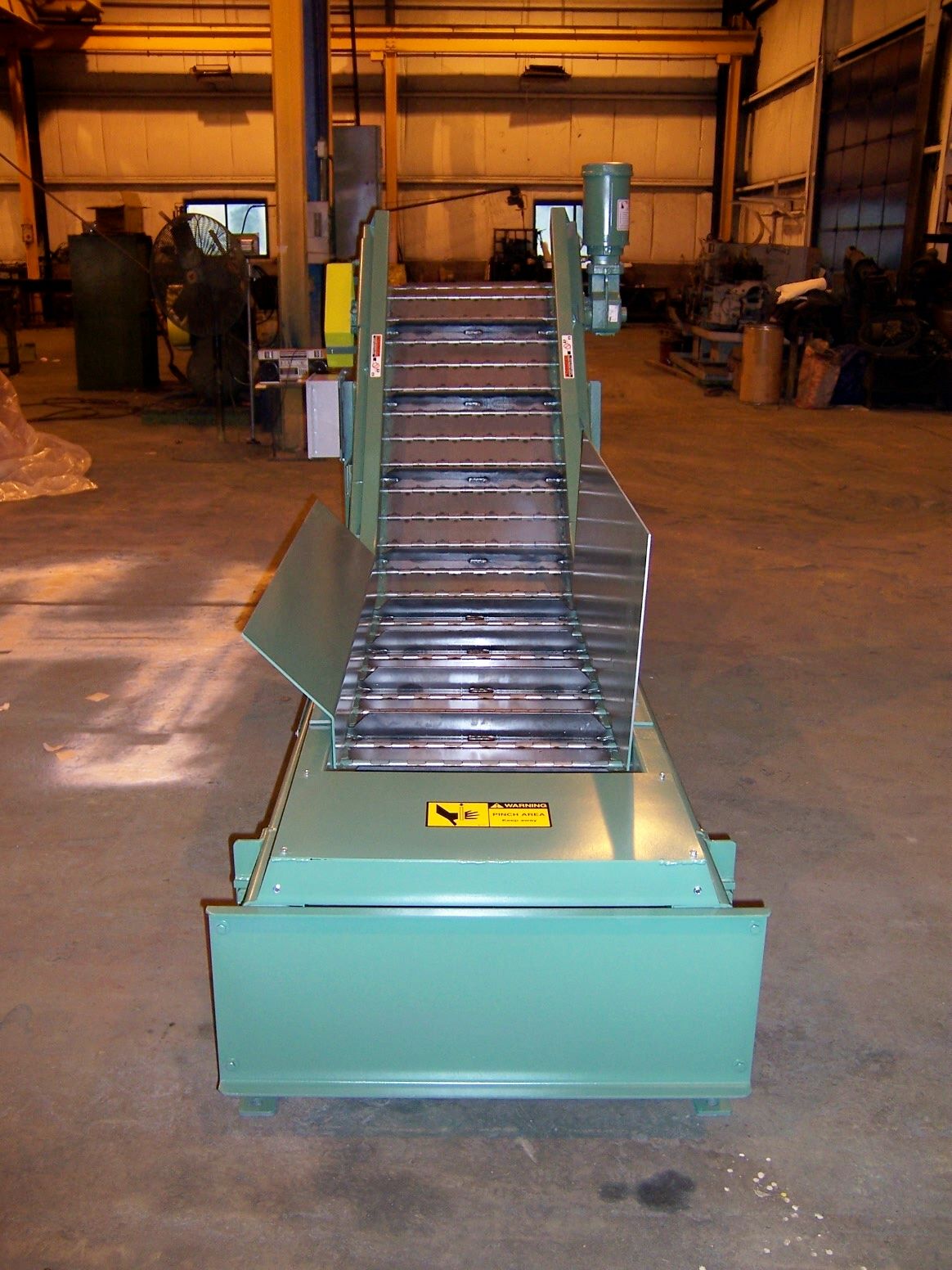

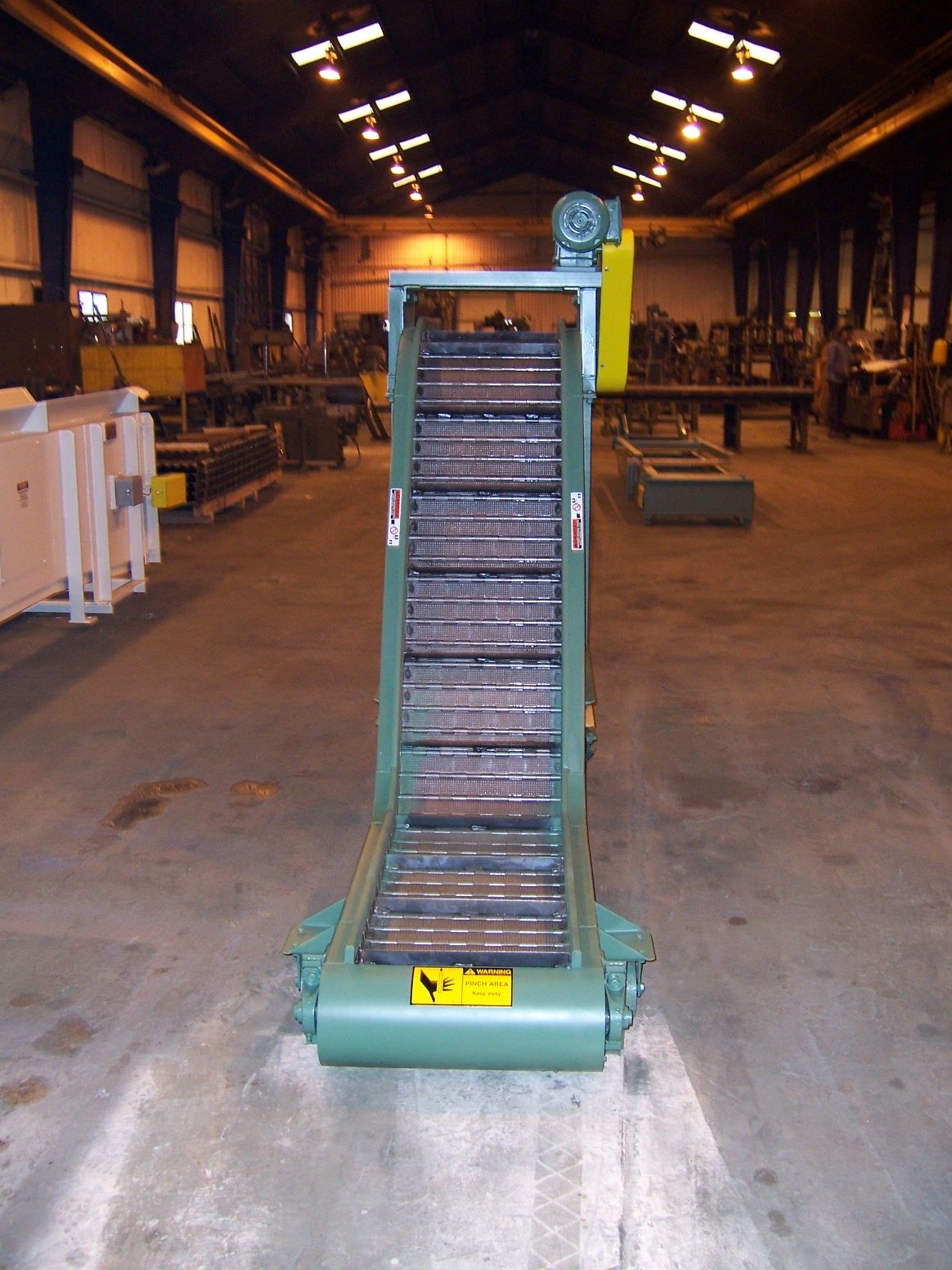

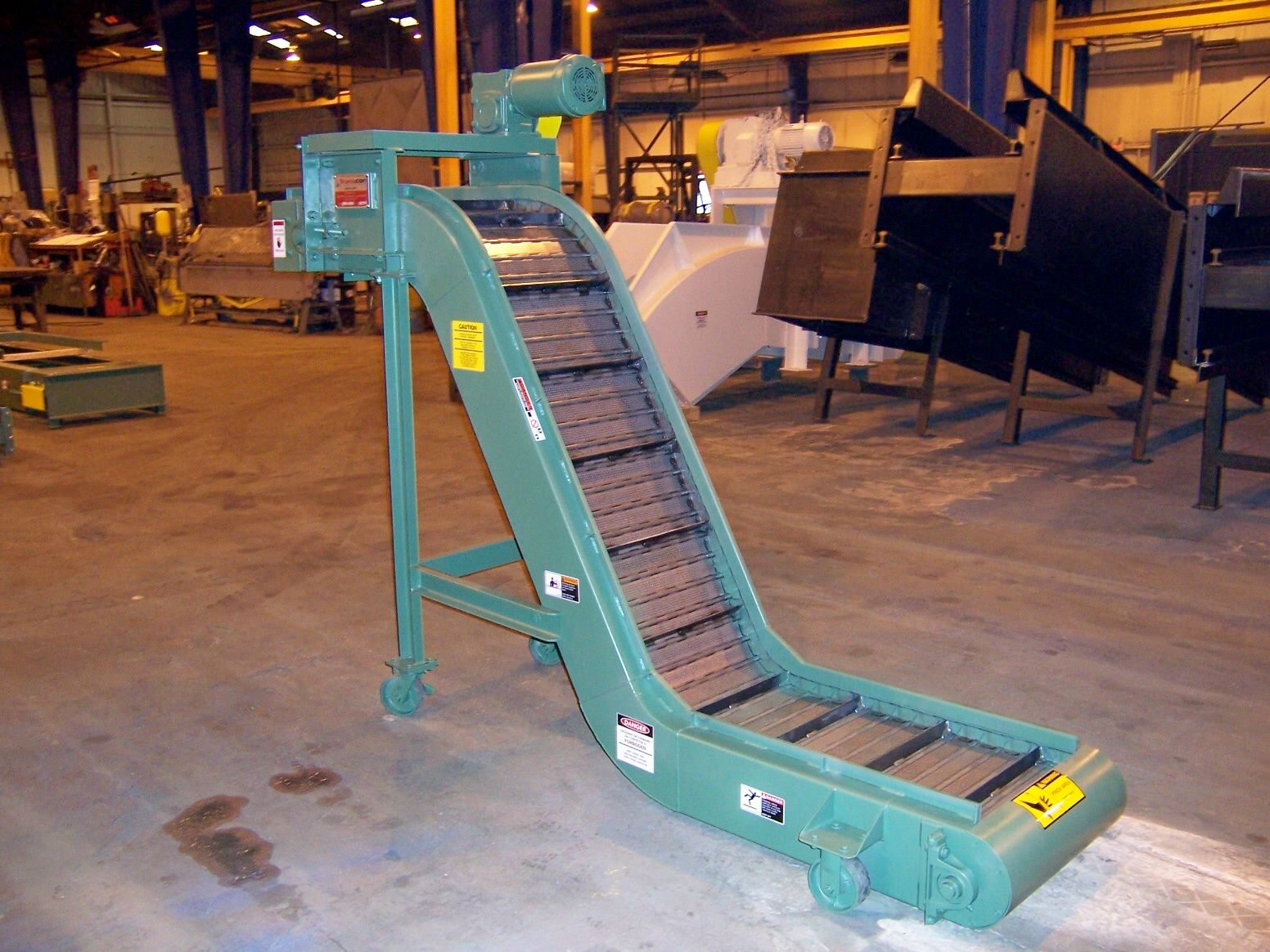

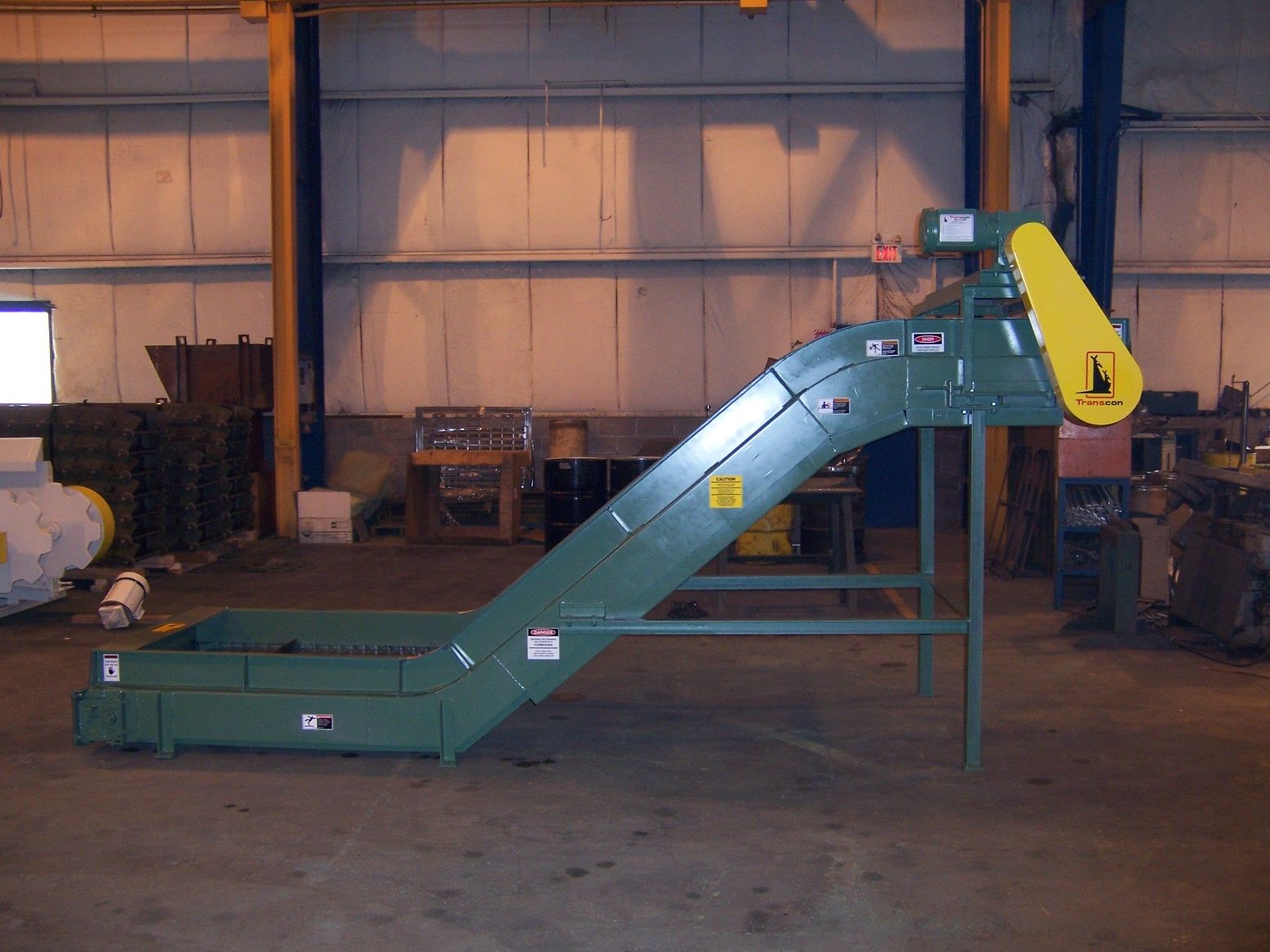

Chip Removal Conveyors
Designed for CNC machining environments with coolant, turnings, and fine chips.

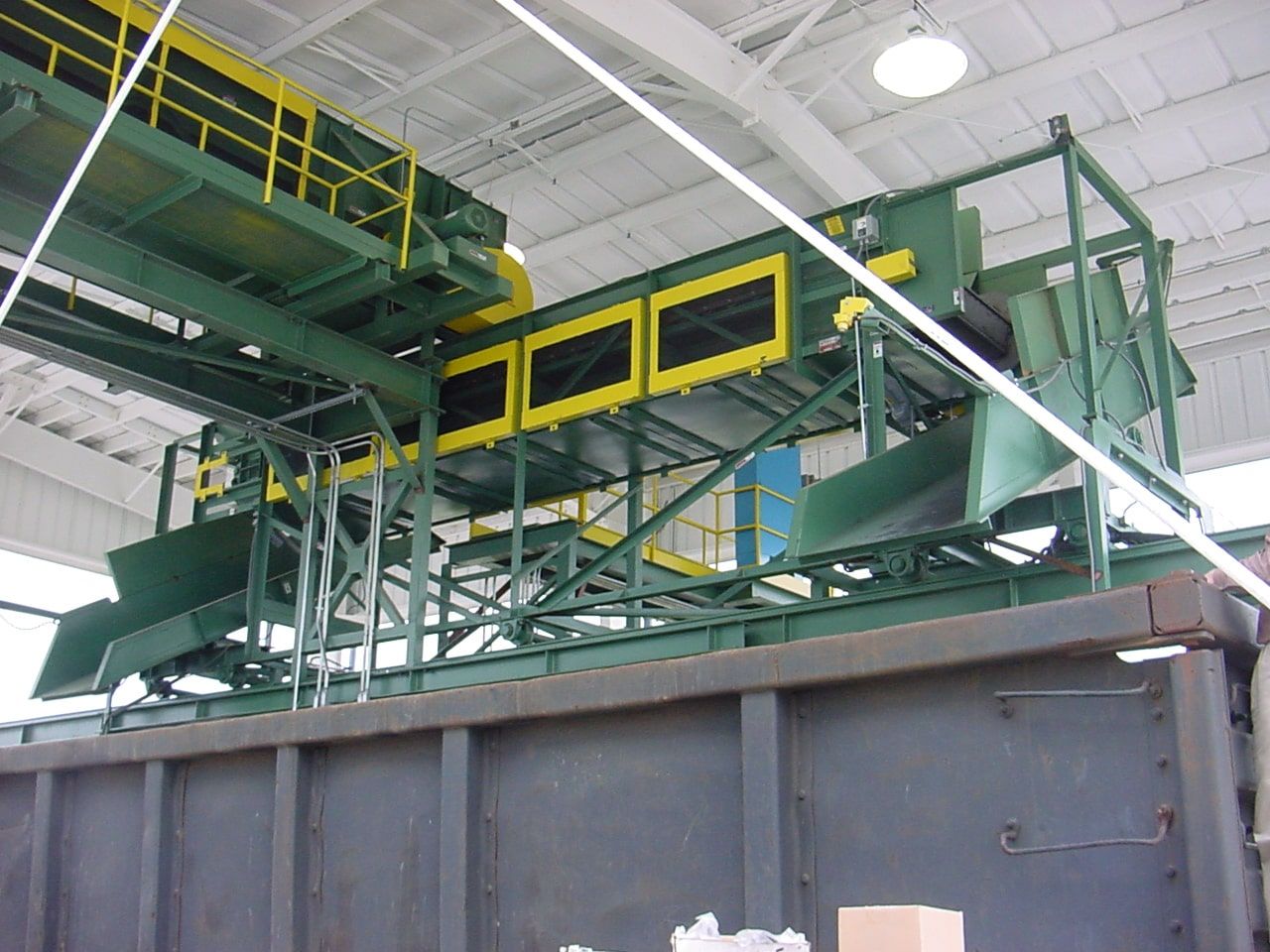

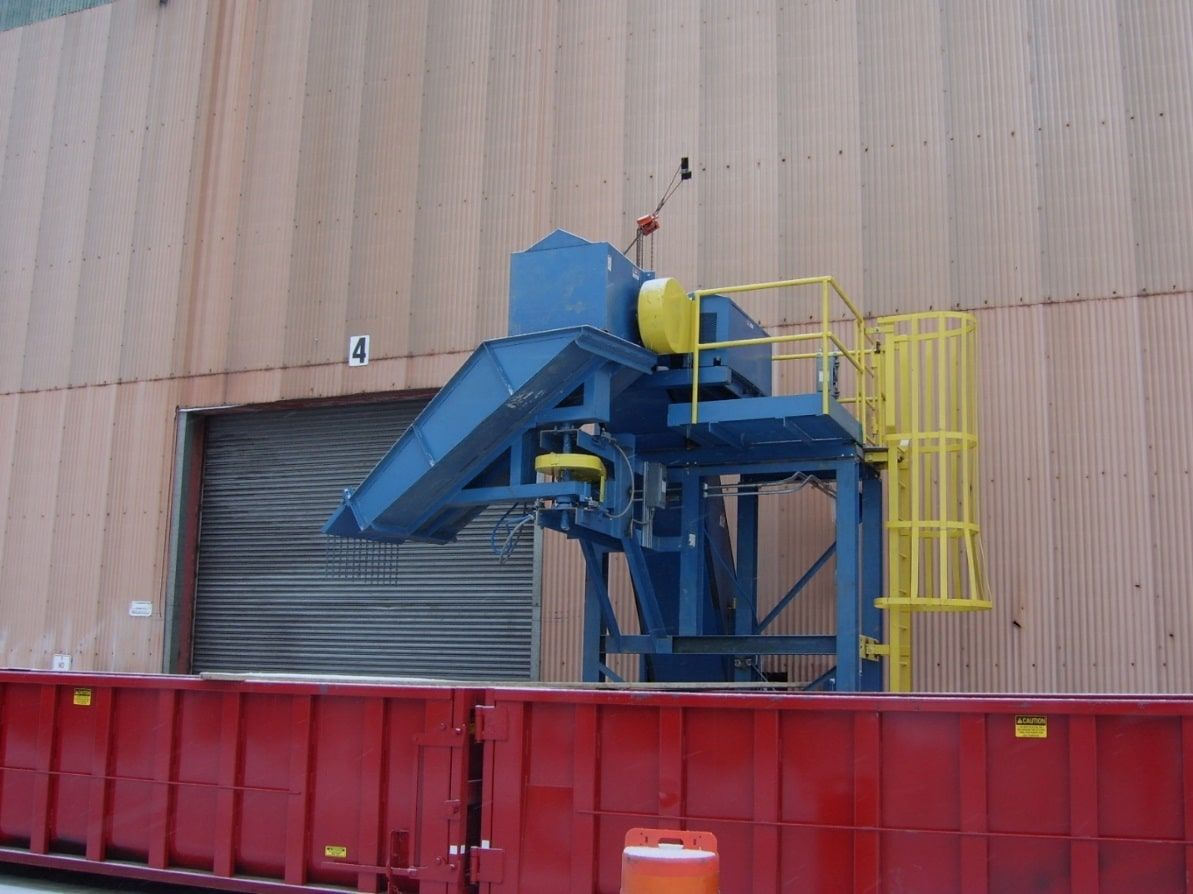

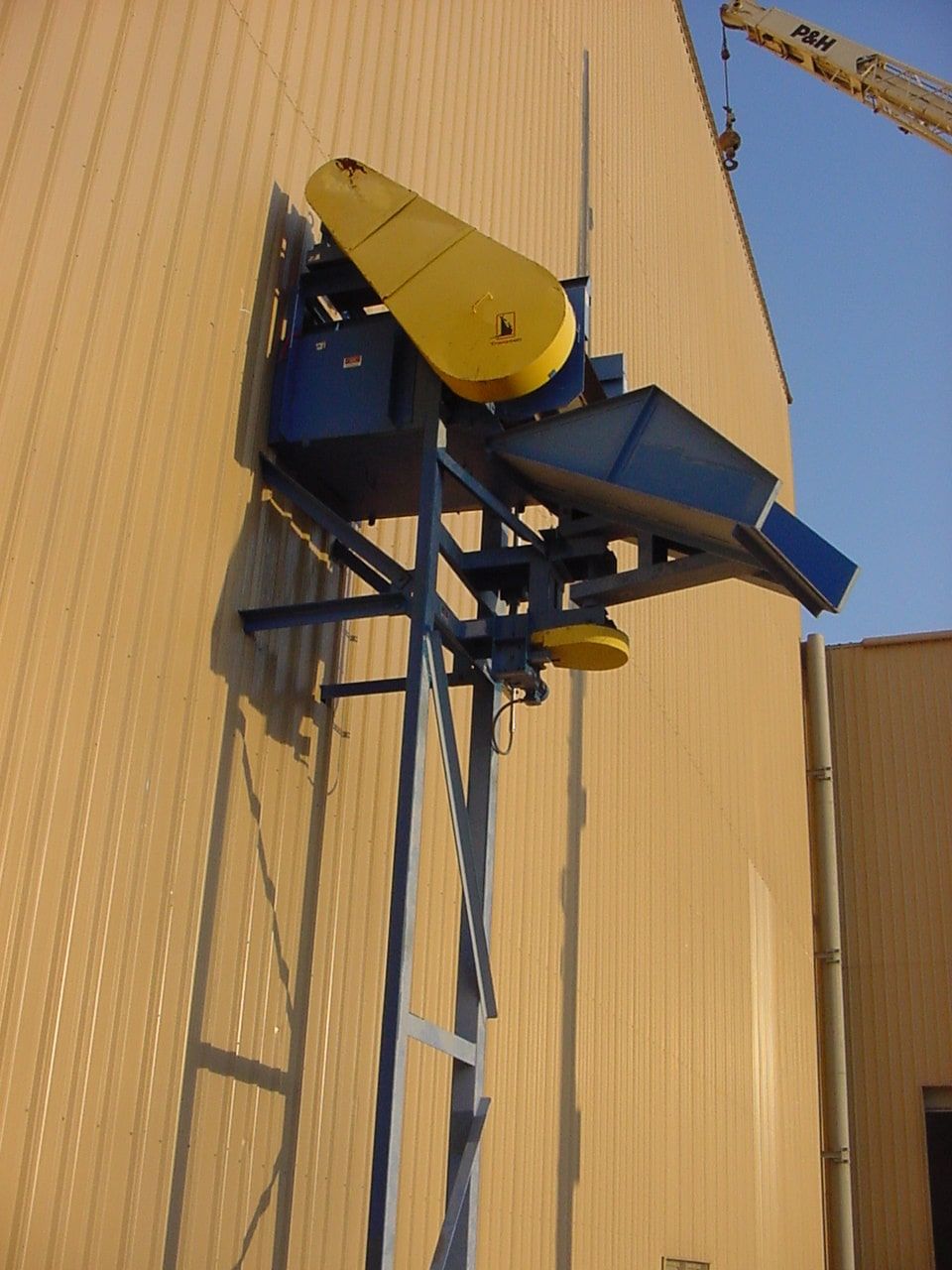

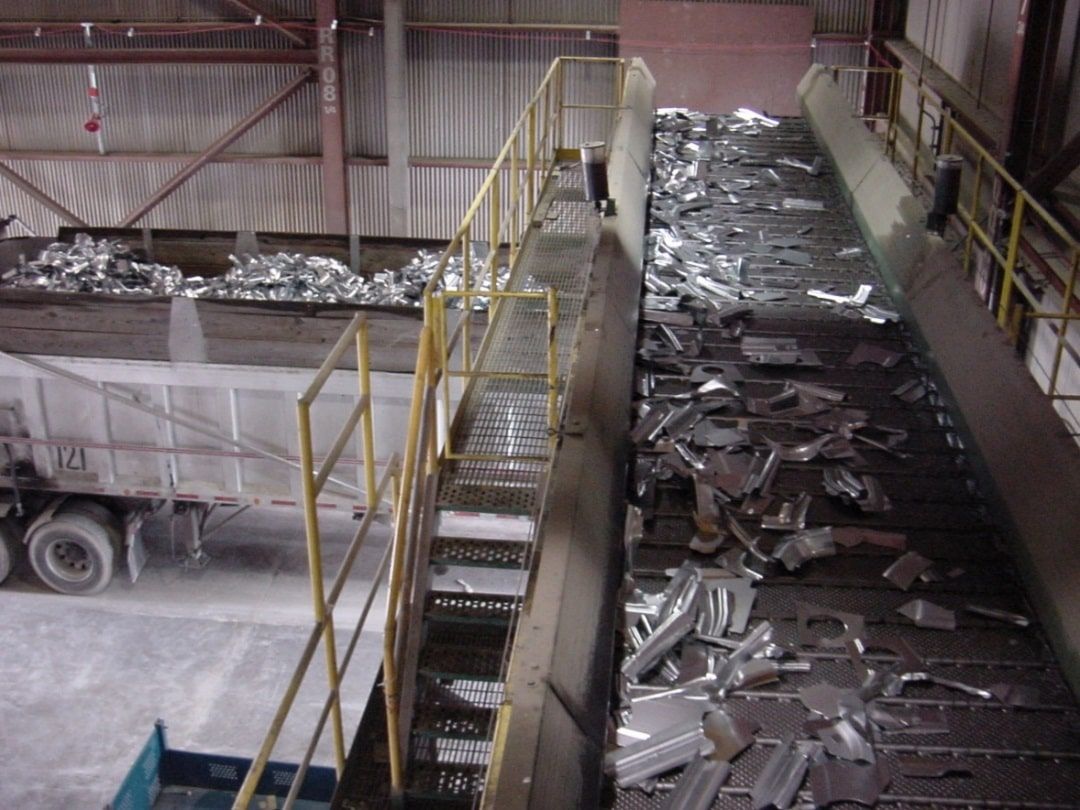

Scrap Handling Systems
Engineered for stamping, fabrication, and high-volume metal scrap removal.
Heavy Duty Conveyors for Forging
Built to withstand high temperatures, scale, and impact in forging operations.
Custom Conveyor Systems
Purpose-built conveyor designs tailored to unique material handling challenges.
Common Questions
Short answers to what engineers and maintenance teams ask us most about this equipment.
What is Transcon’s welded hinge steel belt design?
Our exclusive welded-loop hinge design eliminates the traditional hinge pin entirely. Instead of relying on pins that can shear, loosen, or wear out, we create a continuous welded connection between belt sections. This distributes load forces more evenly across the belt, resulting in superior strength, better alignment and tracking under load, and dramatically reduced belt stretch and deformation.
How does the welded hinge design differ from traditional piano-style hinges?
Traditional conveyor belts use piano-style or pin-based hinges to connect belt sections. These pins are the weakest point in any conventional belt - they shear under impact, loosen over time, and create alignment problems. Transcon's welded hinge eliminates pins completely. The result is a belt that handles up to 600 lbs per linear foot compared to approximately 20 lbs/ft for typical pin-hinge competitors.
How much weight can a Transcon welded hinge belt handle?
Our welded hinge steel belt conveyors are rated for up to 600 pounds per linear foot - roughly 30 times the capacity of conventional pin-hinge conveyor belts, which typically max out around 20 lbs/ft. Combined with material up to 4 times thicker than competitors, this makes our belts ideal for severe-duty applications like hot forging, heavy scrap handling, and high-impact environments.
What belt pitches does Transcon offer, and how do I choose?
Transcon builds welded hinge steel belt in four standard pitches: 2½″, 4″, 6″, and 9″. Pitch is the spacing between hinge rods, and it drives how the belt handles load, impact, and material size.
The 2½″ and 4″ pitch belts are formed from 1/8″ plate and suit smaller, finer material. The 6″ and 9″ pitch belts start at 3/16″ plate and go up past 1″ thick where the application calls for it, which makes them the choice for bulky material, heavy loads, and high impact.
In practice the decision comes from what you are moving, how much of it, and how hard it lands on the belt. For a first-pass estimate from your own load, length, and incline figures, try the conveyor sizing calculator.
Why are Transcon belts more durable than the competition?
Three factors set our belts apart: our exclusive welded-loop hinge design that eliminates the weakest failure point (hinge pins), material thickness up to 4x greater than competitors, and our in-house engineering that allows us to tailor every belt to the exact demands of the application. We don't make off-the-shelf conveyors - every system is built for the specific loads, temperatures, and materials it will handle.
